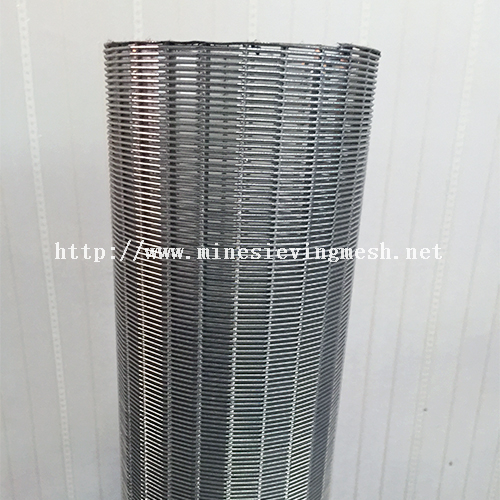

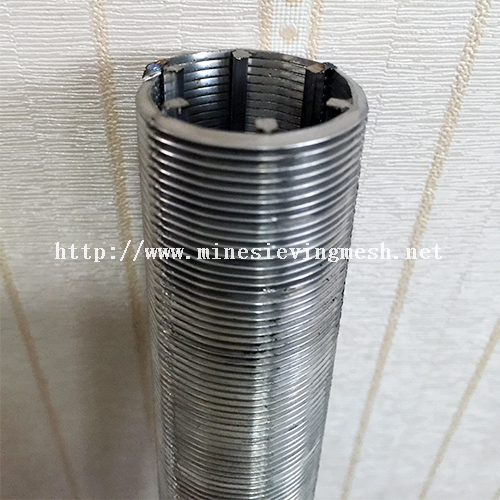

Wire Wrapped Screen

  • Brand Name: YanZhao
  • Place of Origin: China
  • Quality Inspection: ISO9001
  • Port: Xingang, Tianjin
  • Minimum Order Quantity: 200 Set/Sets
  • Supply Ability: 3000 Set/Sets per Month
  • Payment Terms: L/C,T/T
Quantity:

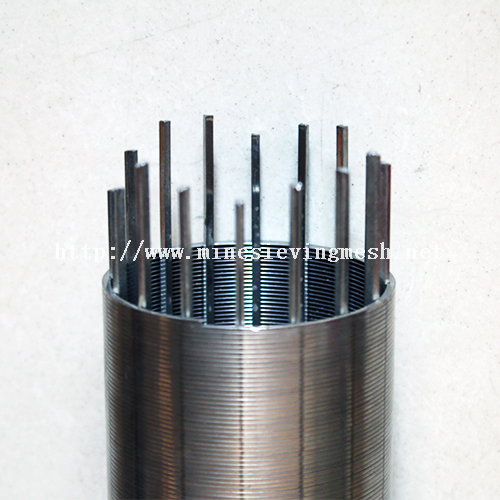

Wire wrapped screen  is widely used in oil, gas and water wells sand prevention industry, its position in the water well industry especially prominent, a variety of water filtration tubes most widely used one. The product consists of a trapezoidal wire windings on the circumferentially arranged a group of formula longitudinal support rods welded together. Around the wire are connected together by welding with rod, so that the integrity of strict continuous wire wrapped screen performance with the minimum amount to withstand high pressures. Wire wrapped screen gap opening is formed by over successive intervals of wire around the size of the gap. Production processes by professional staff using advanced sophisticated professional equipment for production.
Material: 302,304,304L, 316,316L such as stainless steel wire and carbon steel wire, galvanized wire and so on.
Features: wire wrapped screen by the "V" stainless steel wire, stainless steel support ribs composition, compared with other conventional filter element having a rugged, high pull-out strength, high anti-crushing strength, corrosion resistance, high temperature , easy to plug, easy to wash and so on.
advantage:
1, a continuous gap has greatly increased over the water area, so better contact with the aquifer
2, V-type cross-sectional structure to avoid clogging, to ensure smooth flow
3, long-term continuous pores can effectively use
4, trapezoidal drainage pipe firm structure, high porosity, the exact size of the gap
5, wire ladder filter pipe easy backwashing, long life, safe, reliable, comprehensive and low cost

Uses: wire wrapped screen is a kind of water treatment equipment perforations. With deep well pump, submersible pumps supporting the use, can also be used for water treatment equipment, environmental protection, desalination of seawater into the treatment of industrial water and domestic water, water treatment, water softening treatment, petrochemicals, oil products terminal filter recycling and chemical acid and alkali liquid filtration, alcohol and other organic solution was filtered.

Specifications:

Nominal size     Screen cylinder    Base pipe

     mm(i n)


OD

   mm

ID

   mm

Ribs number

     n
About quality

kg/m
length

   mm

OD

     mm

ID

   mm

About quality

kg/m
General sieve
Tube length

     mm
Sieve thermal recovery tube length

     mm
60 (2 ⊃3;/8) 75 62 22 5.3
1000
2000
4000
6000
9000
60.3  50.6 7.0
1600
2600
4600
6600
9600

1800
2800
4800
6800
9800
73 (27/8) 88 75 26 6.0 73 62 9.7
89(3⊃1;/2) 105 92 32 7.0 88.9 76 13.7
102(4)

118

105

36

7.5

101.6

90.1

14.1

 114(4⊃1;/2)

131

118

40

9.0

114.3

100.5

17.3

127(5) 143 130 44 10.0 1 27 112 22.3
  140(5/2) 156 143 48 11.0 139.7 124.3 23.1
  165(65/8) 184 172 54 13.0 168.2 150.3 35.7
178 (7) 194 182 58 14.5 177.8 161.6 34.2

绕丝筛管_1 绕丝筛管_2
