Wells Filter Pipe

  • Brand Name: YanZhao
  • Place of Origin: China
  • Quality Inspection: ISO9001
  • Port: Xingang, Tianjin
  • Minimum Order Quantity: 200 Set/Sets
  • Supply Ability: 3000 Set/Sets per Month
  • Payment Terms: L/C,T/T
Wells filter pipe  can adapt to a variety of environmental conditions, the use of highly corrosion-resistant materials can prevent dirt filter tube surface, ensures maximum water harvesting area and sufficient strength.
Applications: with deep well pump, submersible pumps supporting the use, can be used in water treatment equipment, environmental protection, desalination of seawater into the treatment of industrial water and domestic water, water treatment, water softening treatment, petrochemicals, oil products terminal filtration and chemical recycling organic solution of acid, alkali liquid filtration, alcohol and other filters. It can also be used for hydrogeological exploration, drilling, drilling, construction, reservoir precipitation, precipitation foundation digging, geothermal development and utilization of mineral development and utilization, geothermal air-conditioning, repair bad wells, groundwater source water.
1. The high porosity filter tube is more suitable for the construction of high-efficiency water, oil and gas wells.
2. Low running costs, high porosity drainage tube is more conducive to groundwater infiltration. Plenty of water so that the water level drop deep reduced, thereby reducing energy consumption, especially for wells in sand and silt formation.
3. Reduce the pump wear, under the same conditions, higher porosity such that when the penetration rate of groundwater drainage pipe penetration rate than other filtering device to be more slowly, thus avoiding the sand in a larger pressure By entering the filter pipe reduce pump wear.
4. The opening area of ​​the filter tube wells with the large, high filtration area ratio, maximum up to 60%.
5.V shaped wire filter pipe easy backwashing, long life, safe, reliable, comprehensive and low cost.
6. The relatively larger filtration area can reduce the pressure when the water infiltration, to avoid the sand into the well pipe in the larger pressure, thereby reducing the friction of sand and equipment, reduce wear and improve the life of the equipment.
Nominal Diameter (mm): 1.5 "(38), 2" (50), 3 "(73), 4" (108), 6 "(159), 8" (219), 10 "(250), 12" (273), 14 "(325)
The gap (mm): 0.1,0.15,0.25,0.5,0.76,1.0,1.25, 1.50,1.75,2.0,2.5,3.0,4.0,5.0
Porosity: 10% - 60%
Length: 100 ~ 6000mm
Category: single tube depending on the size of the ribs and are intended for 100M ~ 1000M Deep
Material: stainless steel, mild steel
End connections: threaded pipe head or head straight pipe
Standard length: 2.93 m / root; 5.85 m / root

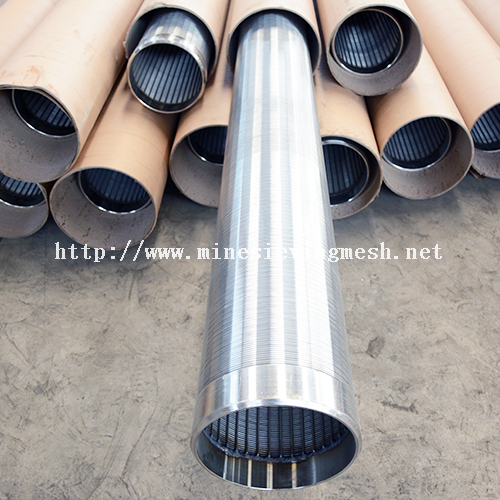

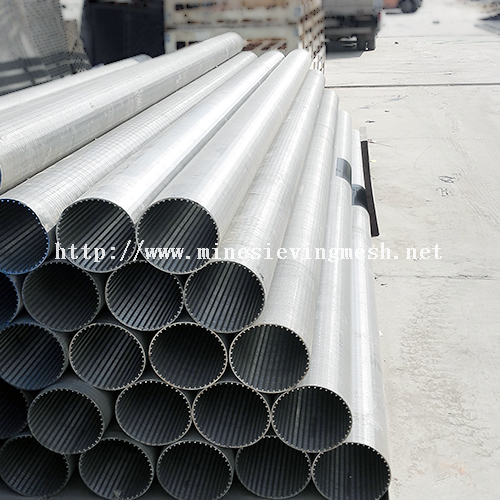

井用滤水管_1 井用滤水管_2
